Boom Crop & Pasture Sprayers

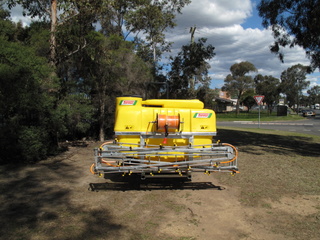

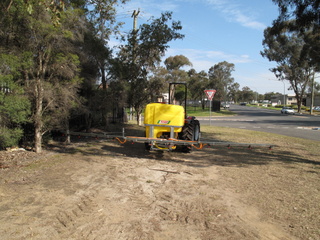

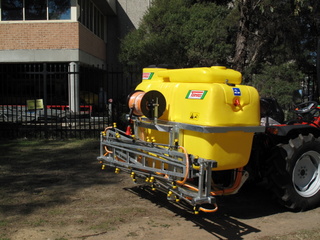

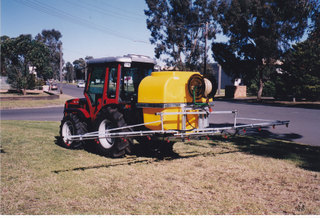

Tornado Linkage Boom Sprayers

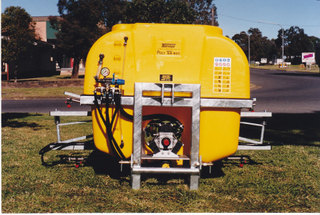

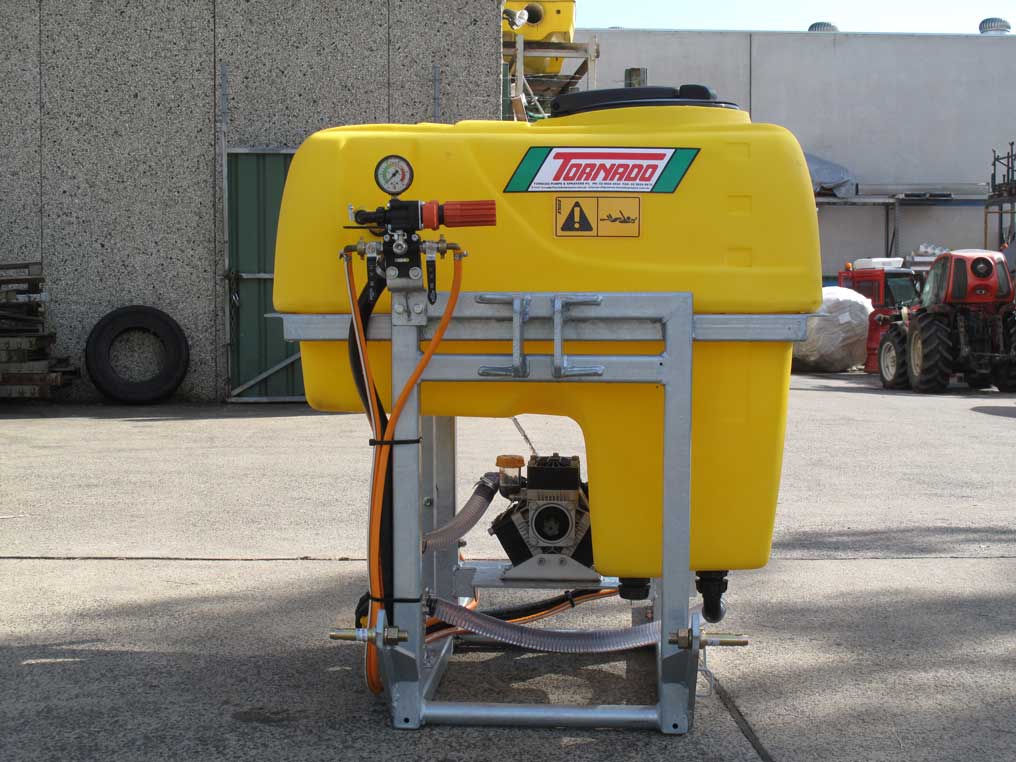

Poly Tanks:     200-300-400-600-800-1000-1200lt Polyethylene UV stabilised tanks, calibrated - hand washing tank. 400-600-800-1000-1200lt are supplied with system flush.

Choice of Pumps:     Bertolini Poly Pumps

  • Poly 2073 - 75lt/min 15 bar
  • Poly 2105 - 106lt/min 15 bar
  • Poly 2120 - 126lt/min 15 bar
  • Poly 2180 - 170lt/min 15 bar.

Frame:     Galvanized sturdy construction RHS steel - heavy duty hitch linkages Cat 1 or Cat 2 pins.

Spray Controls:     Multicontrol "RS" 4 outlets lever type.


  • Multicontrol "RD" 4 outlets lever type rate proportional control valve.
  • Electric controls for in tractor cab operation, 2-5 section with control panel.
  • Inboard computer for accurate spraying.

 Agitation:     Bypass from control valve.

Optional:     Supermix agitation system.

Filtration:     High capacity suction filter - Nylon mesh lid strainer.

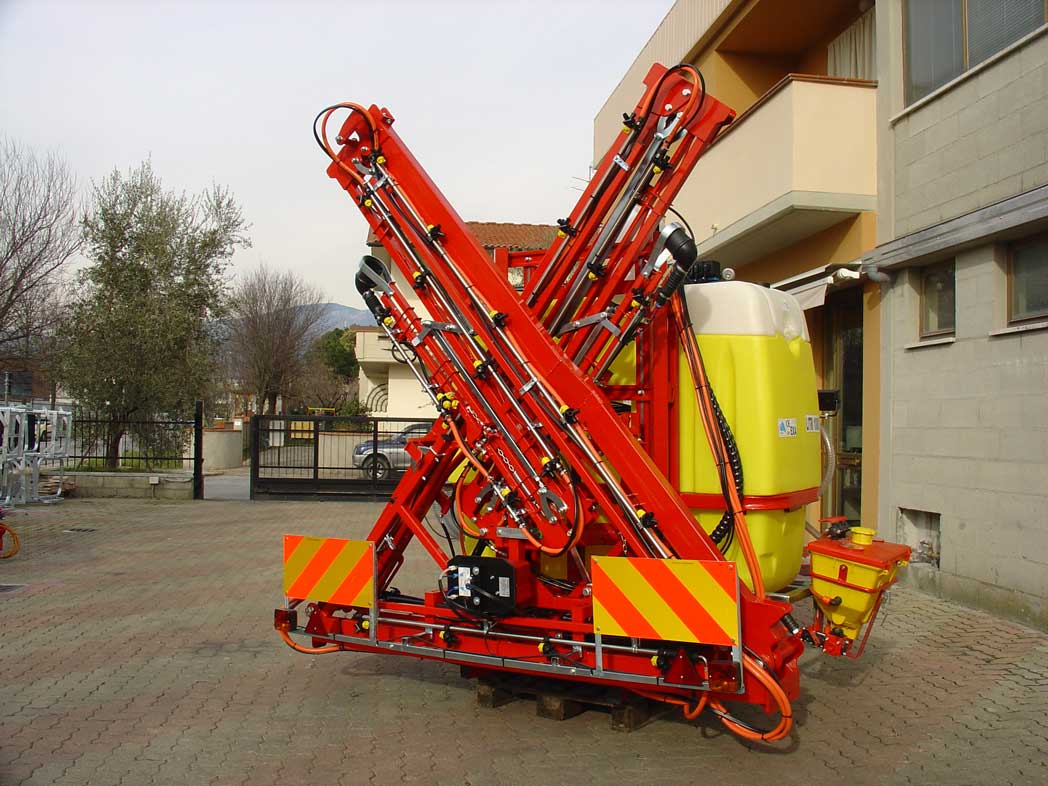

Spray Booms:     4.5-6-8-10-12-15m. Hot dipped galvanized frame, heavy duty type, stainless steel spray lines, non-drip nozzle assemblies with diaphragm check valves, self-aligning caps.

PTO Drive Shaft:     B2 series.


  •         Medium or heavy-duty hose reels in 20-50-100-150m capacity.
  •         Foam Marker.
  •         In Line filters.
  •         Large selection of spray tips.
  •         Triplex Nozzles.
